Iteration 4. First steps with code

23-04-2025

Goal

Can I teach a model to draw?

Motivation

I want to start working towards my idea of solving ARC using code and reinforcement learning.

Development

Qwen2.5 Coder

qwen2.5-coder-family might be a good race-horse for ARC. There are many different model sizes: 0.5B, 1.5B, 3B, 7B, 14B and 32B. The smaller models have a context window of 32k tokens, from the 7B it is 128k.

I would start with the smallest model and there is always time to use a bigger model.

More information:

Released on November 12, 2024
Qwen2.5-Coder-32B-Instruct has become the current SOTA open-source code model, matching the coding capabilities of GPT-4o.
Code repair is an important programming skill. Qwen2.5-Coder-32B-Instruct can help users fix errors in their code, making programming more efficient.
For each size, we open-sourced both Base and Instruct models, where the Instruct model serves as an official aligned model that can chat directly, and the Base model serves as a foundation for developers to fine-tune their own models.

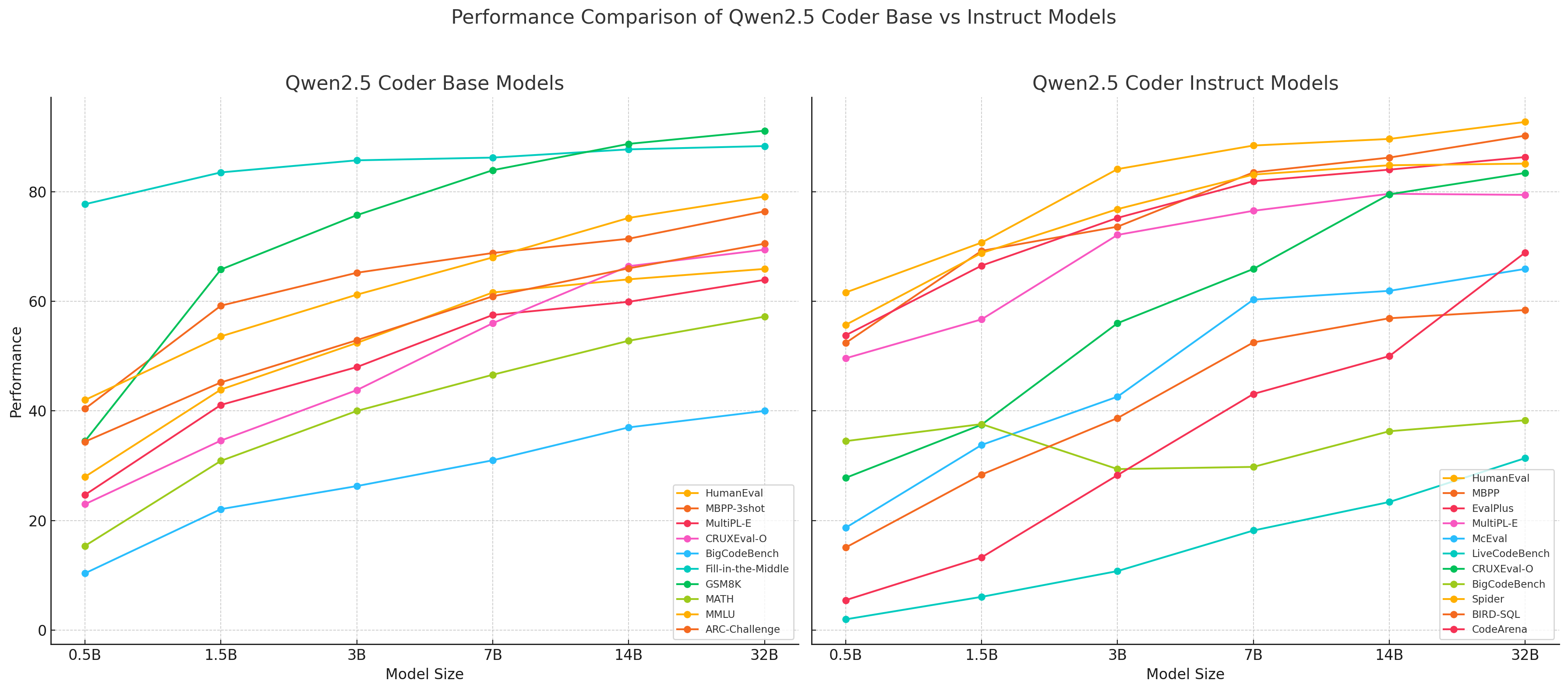

Bigger models score higher in the benchmarks as expected, it resembles a typical log-linear relation.
One weird thing is that the 3B model has the Qwen-research license instead of Apache 2.0 license. The Qwen-research license does not allow for commercial use but I could probably use it for the ARC challenge.

The right tool for each job

VLLM seems to be the fasts option for inference. On my ARC24 solution I was able to make 96 predictions per task, and I believe the time used for inference was around 2 hours. Probably the architects didn't use VLLM because they created their own depth first. Dynamically serving LoRA Adapters
unsloth enables memory efficient and faster fine-tuning on a single gpu
I could create some server to run the generated code on CPU

One interesting implementation would be to have independent services for: inference, fine-tuning and running code. And a master process would call this services, this master process would be very light because all the heavy work will be handed to the services.

DSL definition

There needs to be a document that describes the DSL, it might be a docstring in the python module.
Polymorphism (functions that receive different data types) will make for a more simple DSL
All primitive functions need tests
All primitive functions need training samples of how to use them, we will use them to fine-tune the LLM.
The training samples should have different levels of complexity. There should be very simple examples with just one primitive function, and more complex examples with multiple primitive functions. I might need some criteria to validate training samples, for example I could test what would happen if removing lines of code and if the output does not change it means those lines are not necessary.
LLMs could be helpful to generate new training samples (This was done in the Transduction and induction paper).
I could use my own DSL from ARC24 as a start point, I could also have a look at this other DSL from BARC

The idea is to define a first version of the DSL, train a first model on it and see how it performs on inference.

The development of the DSL would follow these steps:

Write the DSL function
Add tests and verify they run with make test
Add examples of how to use the function and visualize them in a jupyter notebook

I'm going to use python 3.10 because it's the same version as the Kaggle notebook.

I have been researching and it seems that the way to do dynamic code generation is to generate code in string and use exec to run the code. We can use inspect.get_source to get the code from a function but it is not that flexible.

Training script

I'm going to create a first training script that will use the arc24 script as a start point. However I'm going to change how I handled the configuration, I'm going to try the library tyro that seems to have the functionality I want: define a configuration object that can be later modified through arguments.

python fine-tuning.py --output-dir /mnt/hdd0/Kaggle/arc25/trainings/debug --no-log-to-wandb --device-map balanced --random-seed 7 --max-steps 31
python fine-tuning.py --output-dir /mnt/hdd0/Kaggle/arc25/trainings/20250430_first_trainings/random_seed_7 --device-map balanced --random-seed 7 --max-steps 200

python fine-tuning.py --output-dir /mnt/hdd0/Kaggle/arc25/trainings/20250430_first_trainings/random_seed_6 --device-map balanced --random-seed 6 --max-steps 200

python fine-tuning.py --output-dir /mnt/hdd0/Kaggle/arc25/trainings/20250430_first_trainings/random_seed_5_no_dora --device-map balanced --random-seed 5 --max-steps 200

Inference with VLLM

I had problems trying to use LoRAs with VLLM, I updated the version but without too much success. I ended up merging the LoRA with the base model to do predictions with VLLM.

(arc) gbarbadillo@africanus:/mnt/hdd0/MEGA/AI/22_Kaggle/arc25$ conda list | grep vllm
vllm                      0.5.5                    pypi_0    pypi
vllm-flash-attn           2.6.1                    pypi_0    pypi

(arc) gbarbadillo@africanus:/mnt/hdd0/MEGA/AI/22_Kaggle/arc25$ conda list | grep vllm
vllm                      0.8.5                    pypi_0    pypi
vllm-flash-attn           2.6.2                    pypi_0    pypi

Environment creation

conda create --name arc25 python=3.10
conda activate arc25
pip install -r requirements.txt
pip install flash-attn==2.6.3 --no-build-isolation
make develop

Results

I have trained a model to learn to draw up to 5 elements in a small image (side up to 10 pixels).

Accuracy on the train distribution

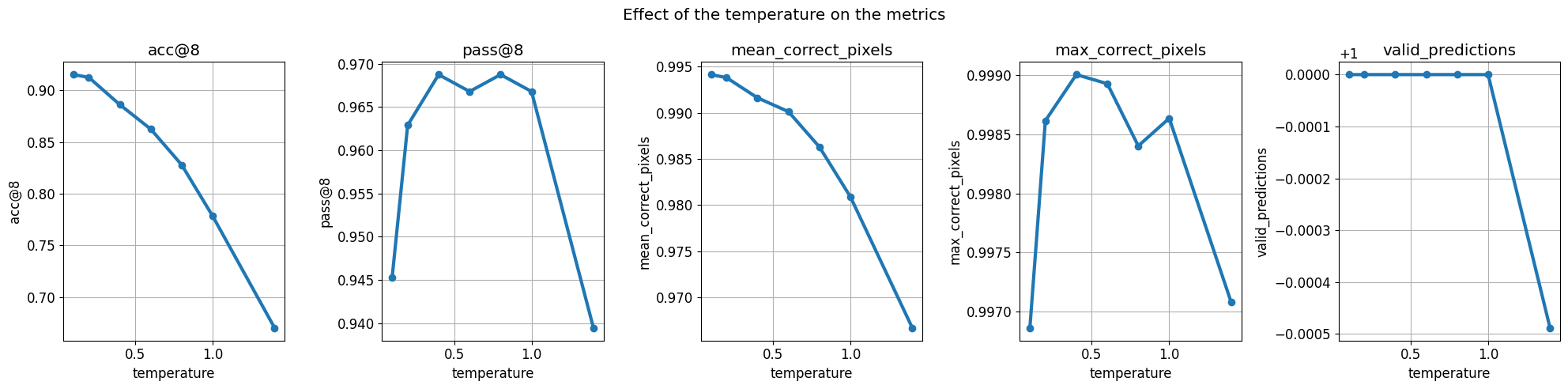

Effect of sampling temperature

This plot shows that when sampling multiple responses is better to use a temperature around 0.5 because it improves the pass rate. The model is able to solve around 97% of the tasks when doing 8 predictions per task.

The evaluation is very fast, doing around 44 predictions per second.

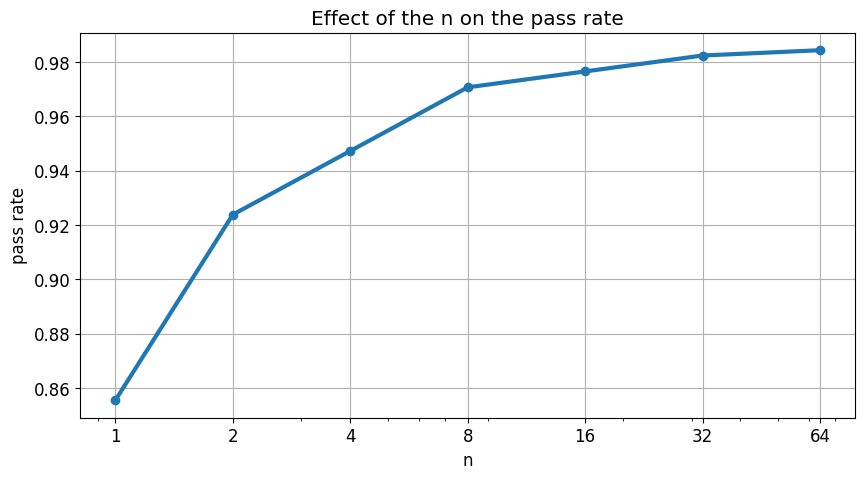

Effect of the number of predictions

We see a nice improvement in pass rate when increasing the number of predictions, as expected.

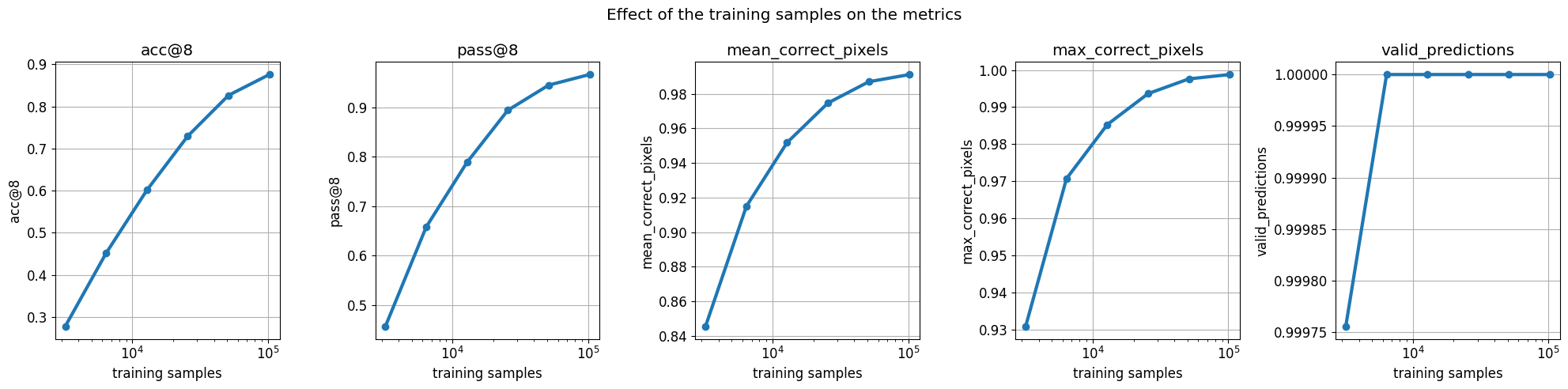

Number of training steps

Let's see the effect that the number of training steps has on the accuracy.

We see a very good trend when increasing the number of training samples. This is expected because we are using in distribution samples for evaluation.

The longest training used 1e5 samples and took around 4 hours. I'm pretty sure it can be done much faster because GPU usage was low.

Maybe we need around 1e6 samples to do the task with close to 100% accuracy.

Out of distribution results

Let's now focus on the out of distribution results, that require higher generalization. These are the most important ones because they are the focus of the ARC challenge.

We can think of 3 different dimensions to study the behaviour of the model with out of distribution tasks. The model has been trained with tasks with 1-5 drawings and an image size between 3 and 10.

The following plots show a clear degradation of accuracy when we got farther from the training distribution.

Number of drawing functions

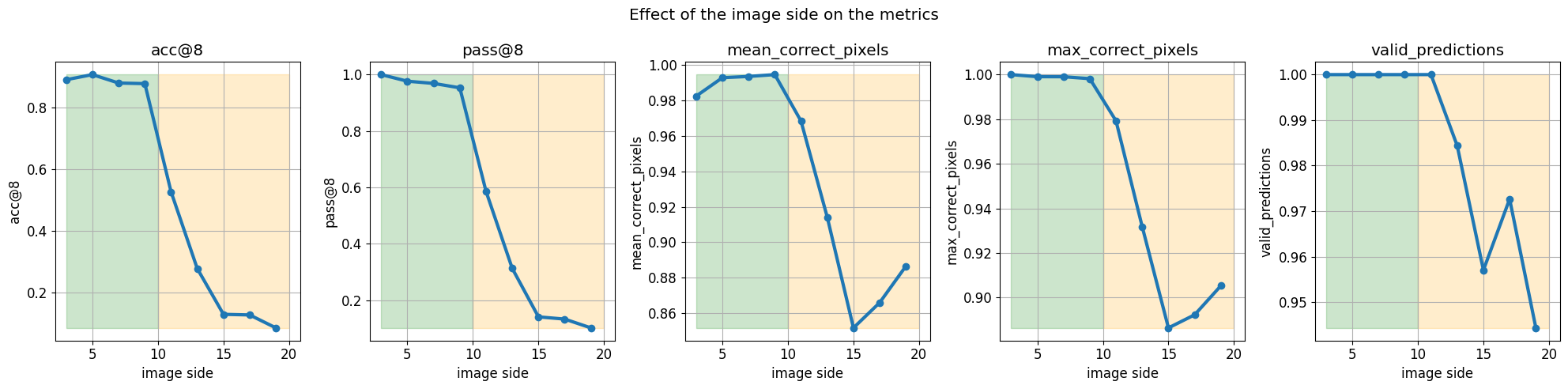

Image size

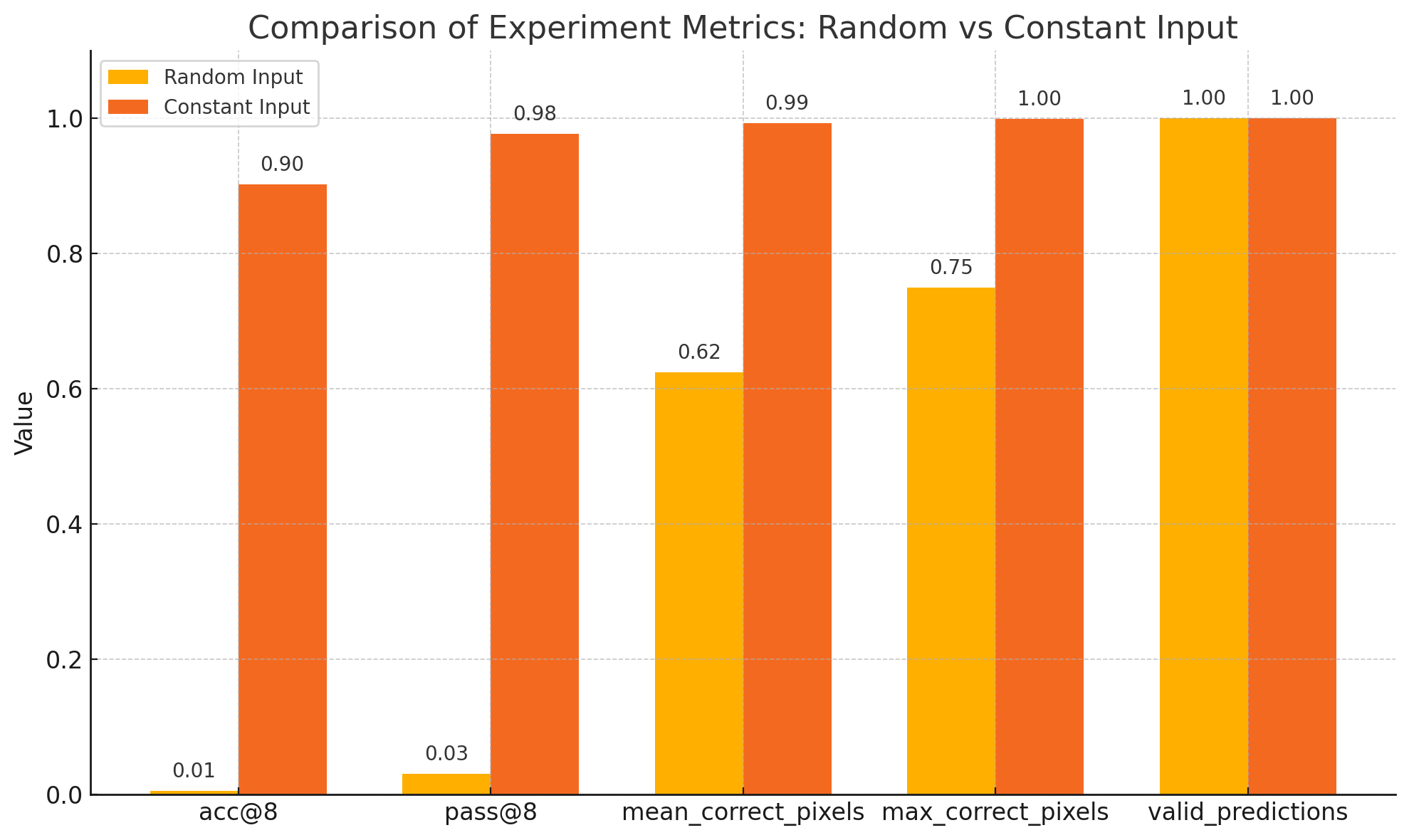

Image content

It seems that the model is not comparing the input and output image pixels, it only needs to know the color of the input image.

Conclusion

We have trained a model on around 1e5 random drawings and it reached a pass rate above 98%. Training for longer will likely improve the results. Using a sampling temperature around 0.5 improves the pass rate due to higher variability.

We have observed that the model struggles to generalize to out of distribution data.

Next steps

Base or Instruct model? On Qwen they recommend the base model if we are going to fine-tune.
lmdeploy seems to be a faster alternative to VLLM
Work to solve the OOD samples, that could validate my ideas of hindsight experience replay and RL
Qwen3 has been released, but there aren't benchmarks about the smaller models.
Optimize hardware utilization during training
